Introduction

The LED Batten Light is a reliable and efficient linear lighting solution designed for commercial and architectural applications. Featuring a clean white housing and slim profile, it delivers high lumen output with excellent energy efficiency.

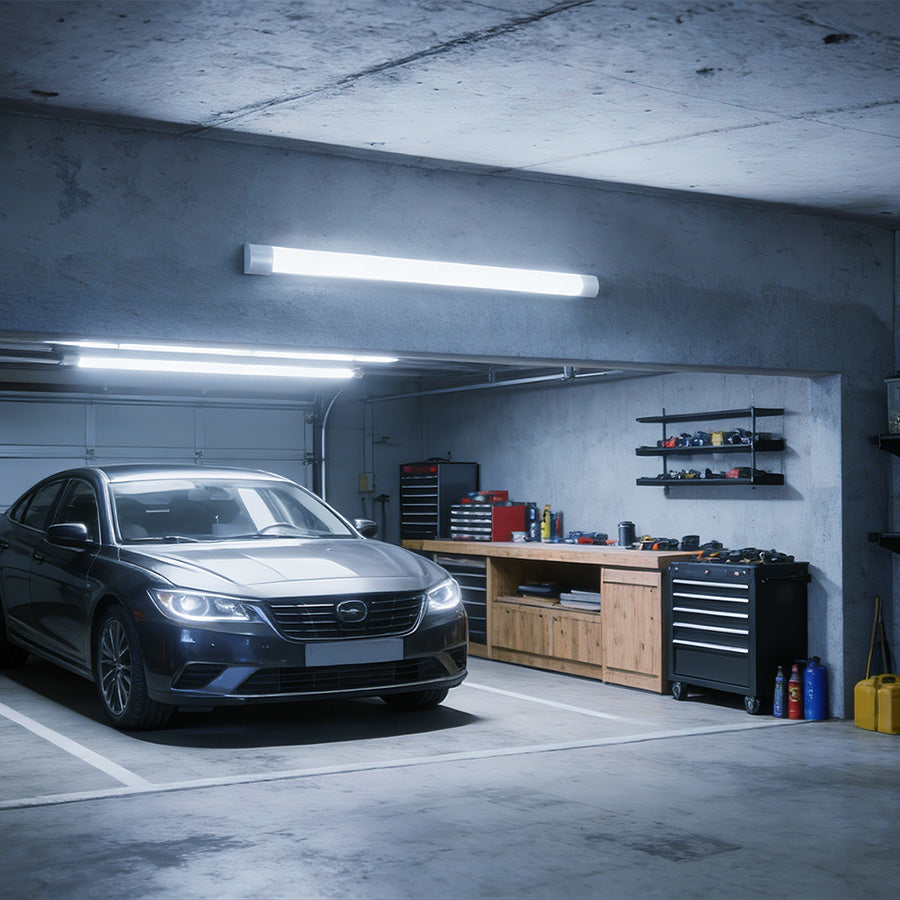

With a wide 120° beam angle and multiple CCT options, our batten light provides uniform illumination for offices, corridors, workshops, retail spaces, and utility areas. Surface-mounted installation and durable PC housing make it easy to install and maintain, while long lifespan ensures stable performance over time.

Highlights

High efficiency up to 120 lm/W
Available in 2FT / 4FT / 5FT / 6FT lengths
Uniform light distribution with 120° beam angle

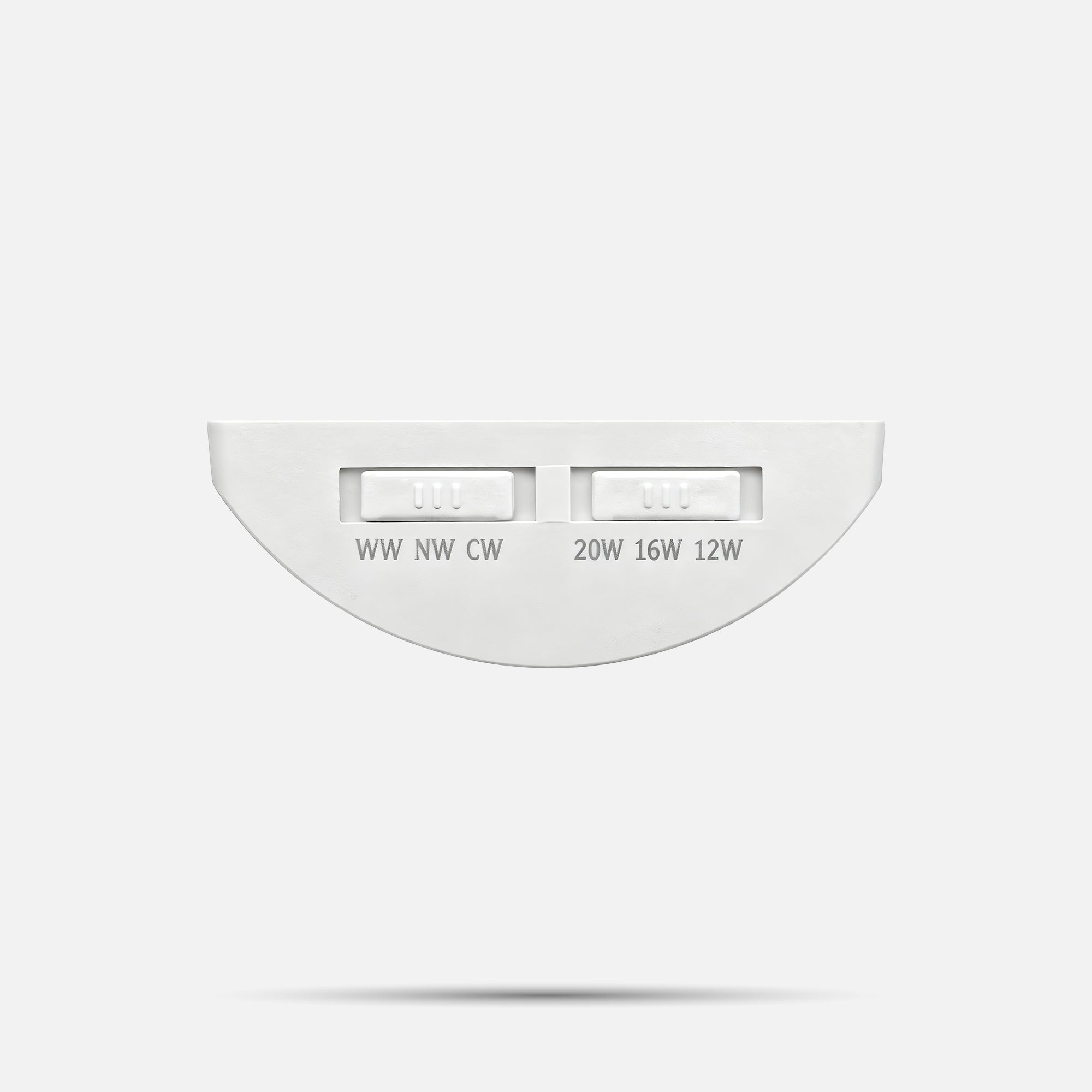

Multiple CCT options: 3000K / 4000K / 6500K
CRI >80 for accurate color rendering
Slim, modern design with white or silver finish
Durable PC housing with aluminum LED board
Surface-mounted installation
Long lifetime up to 20,000 hours (L70 @ Ta25°C)
Certified with SAA / EMC / CE / UKCA
Optional emergency function available on selected models

Technical Specifications

Item	Specification
Product Name	LED Batten Light
Series	SOF169
Installation	Surface mounted
Housing Material	PC housing
Colour Finish	White / Silver
Connection Type	With flex supply cord
Warranty	2 Years
IP Rating	IP20
Beam Angle	120°
CRI	>80

Electrical & Photometric

Parameter	Specification
Input Voltage	220–240V
Frequency	50 / 60Hz
Driver	Self-developed
Class	II
Power Factor	0.5 / 0.9
Light Source	LED SMD
Efficacy	120 lm/W

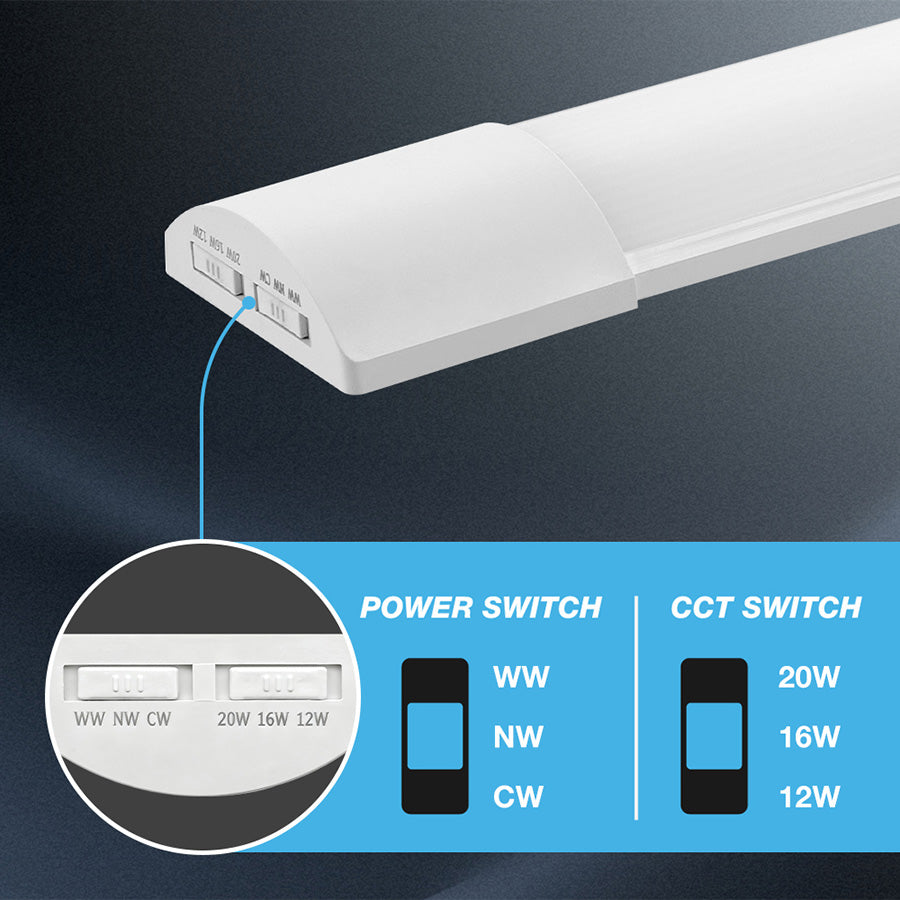

CCT	3000K / 4000K / 6500K
Operating Temp.	-20°C to 40°C
Lifetime	20,000 hours (L70 @ Ta25°C)

Model Options

Item	Specification
Product Name	LED Batten Light
Series	SOF169
Installation	Surface mounted
Housing Material	PC housing
Colour Finish	White / Silver
Connection Type	With flex supply cord
Warranty	2 Years
IP Rating	IP20
Beam Angle	120°
CRI	>80

Documents

Datasheet: LED Batten Light

Manual: LED Batten Light

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Save 20%

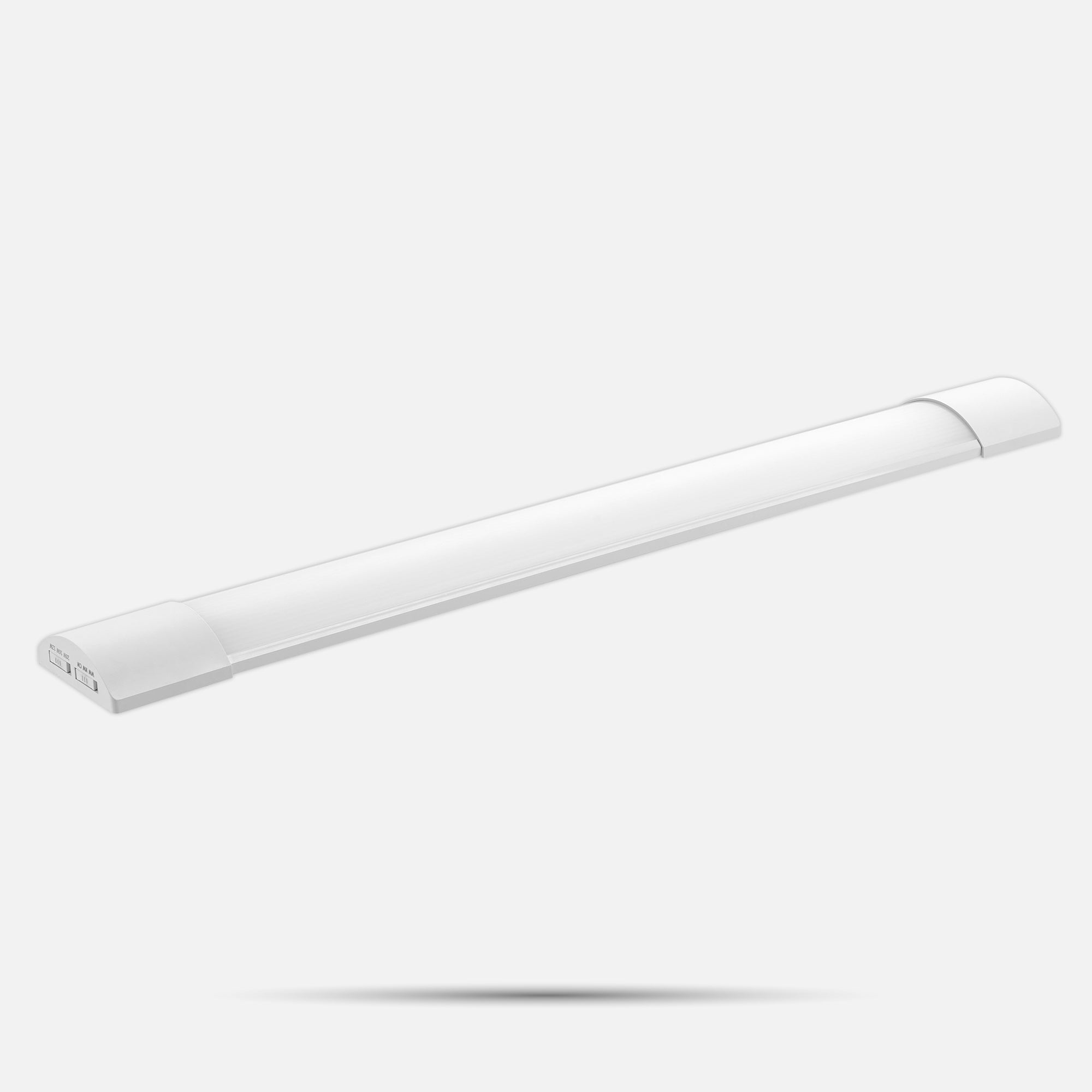

TEMIS LED Batten Light 20W
