Product Description

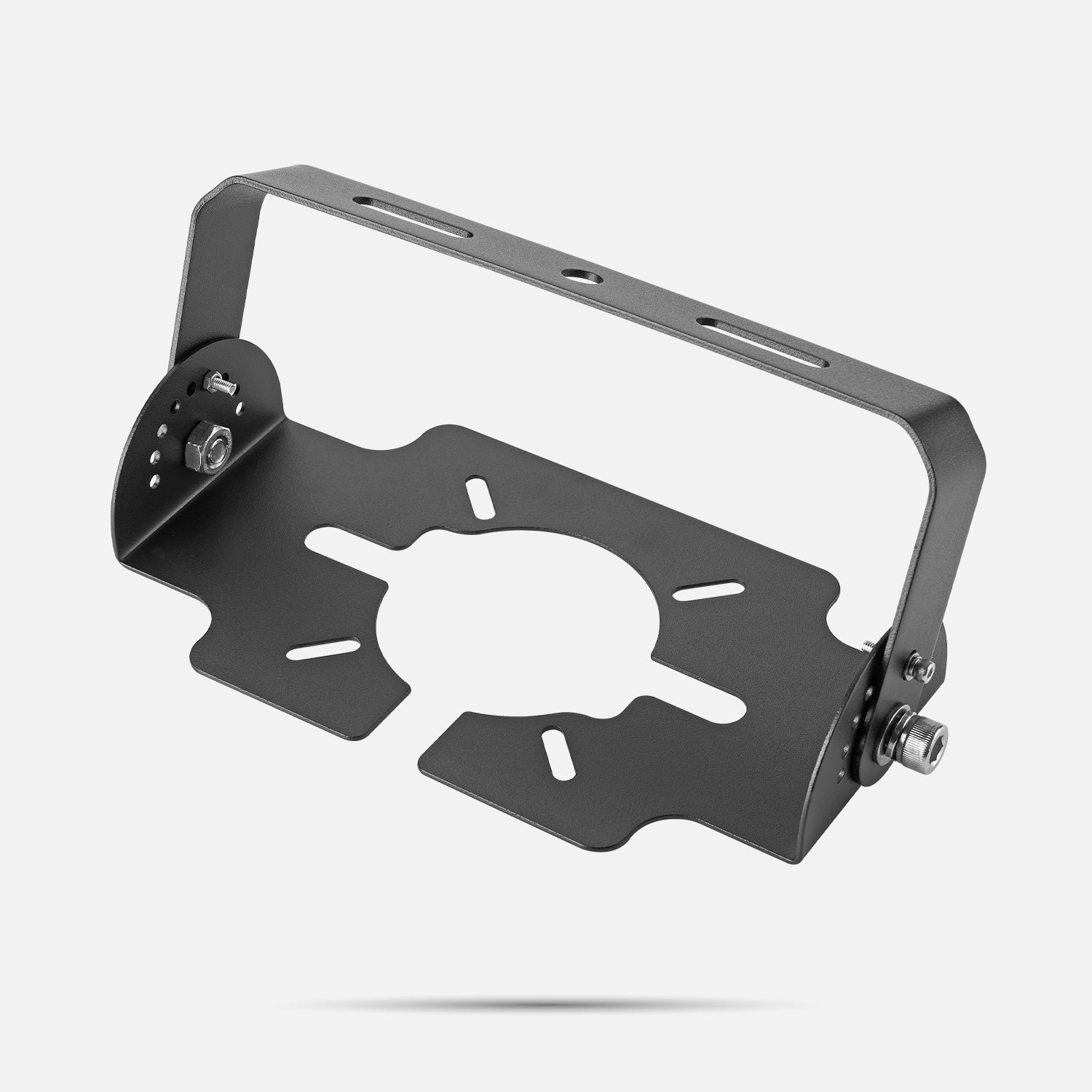

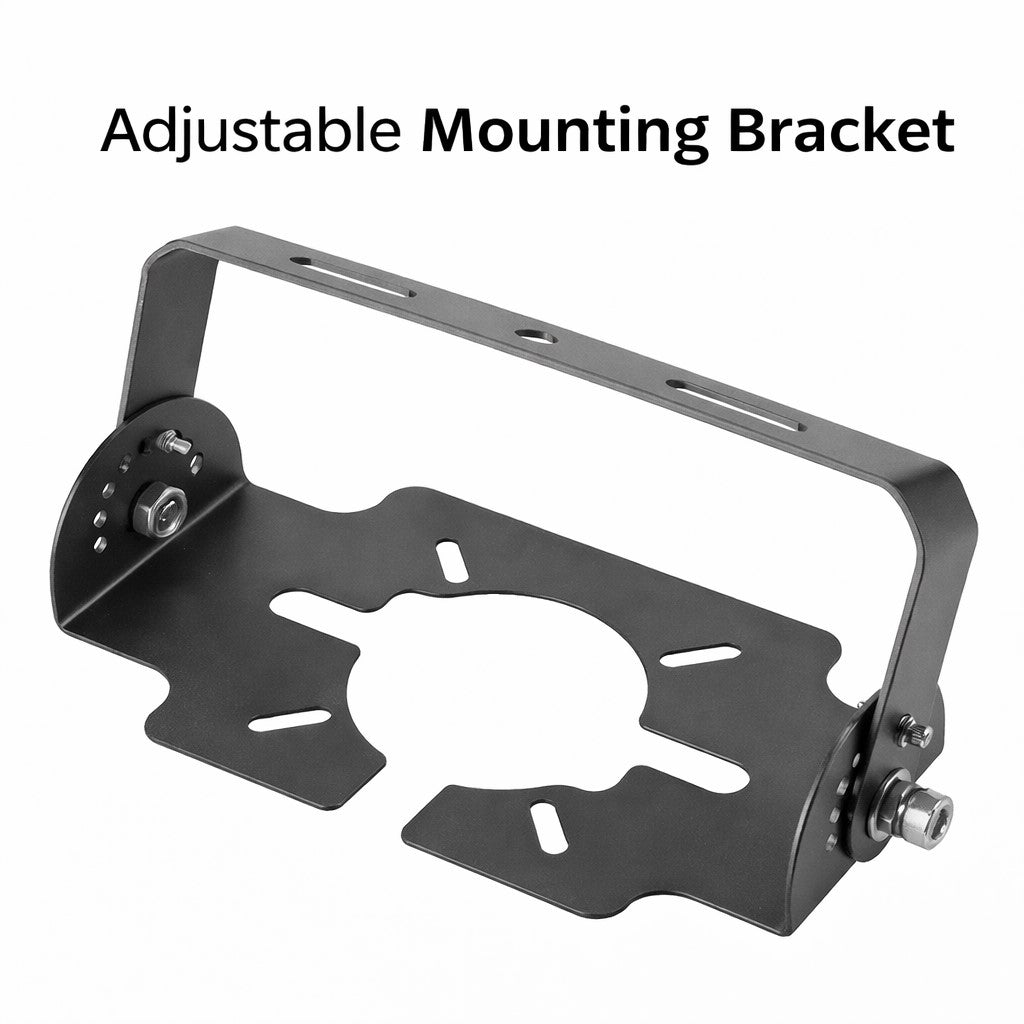

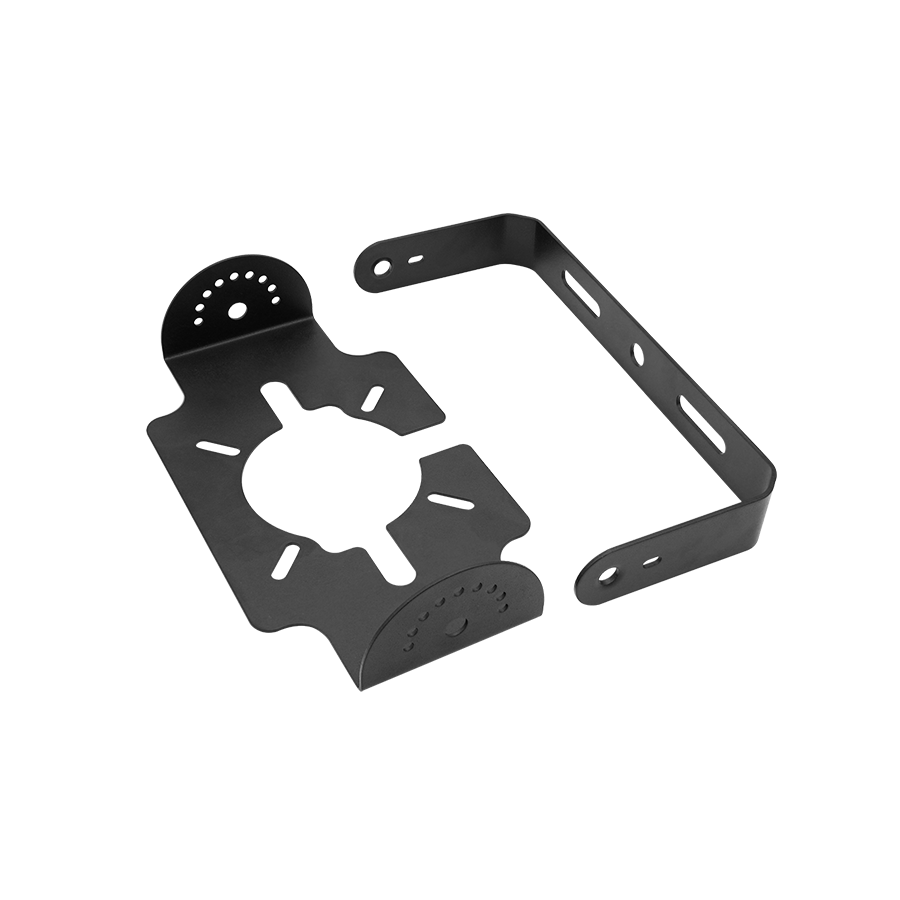

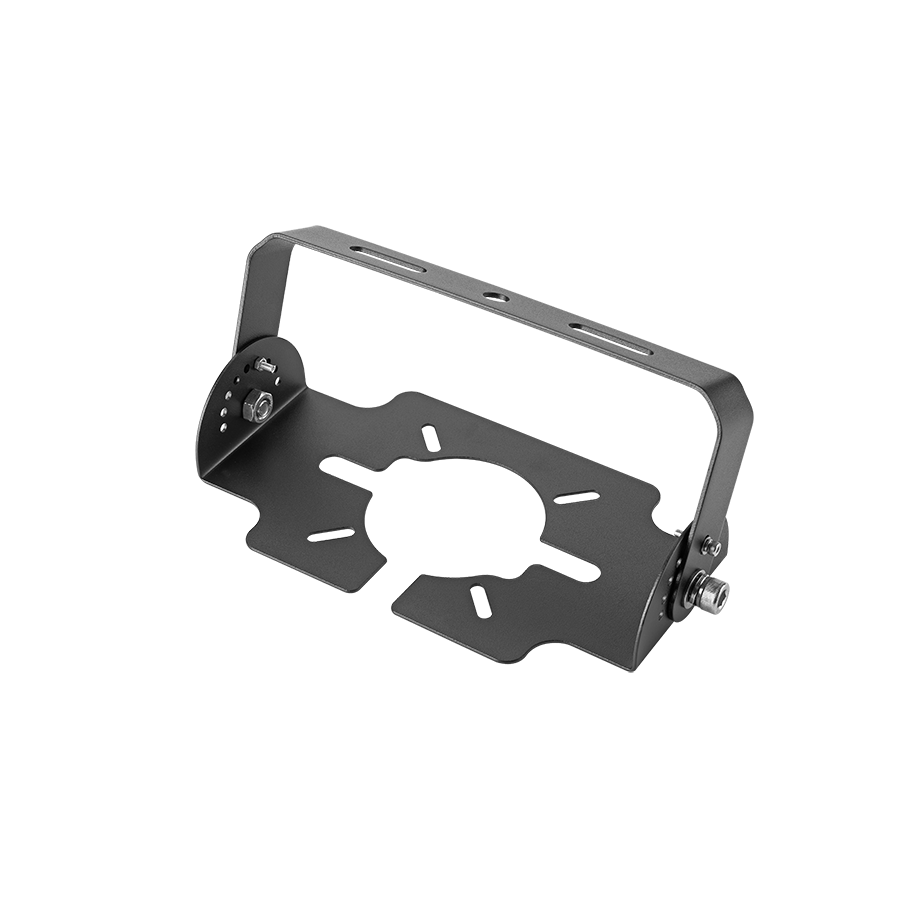

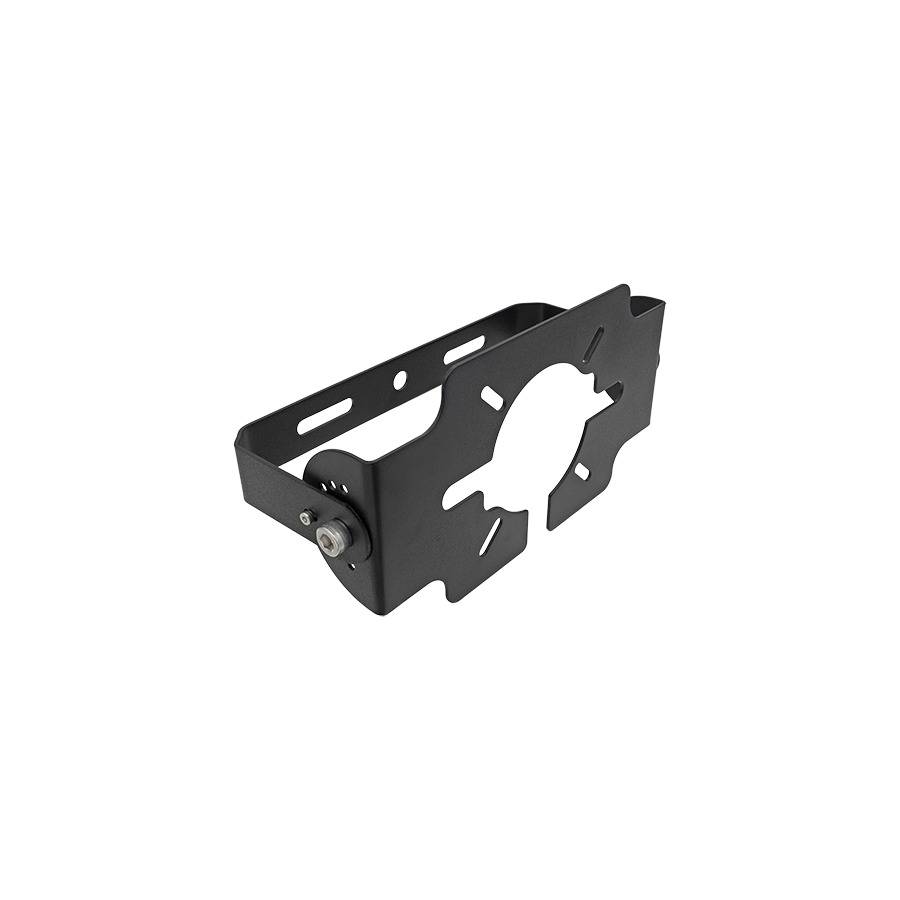

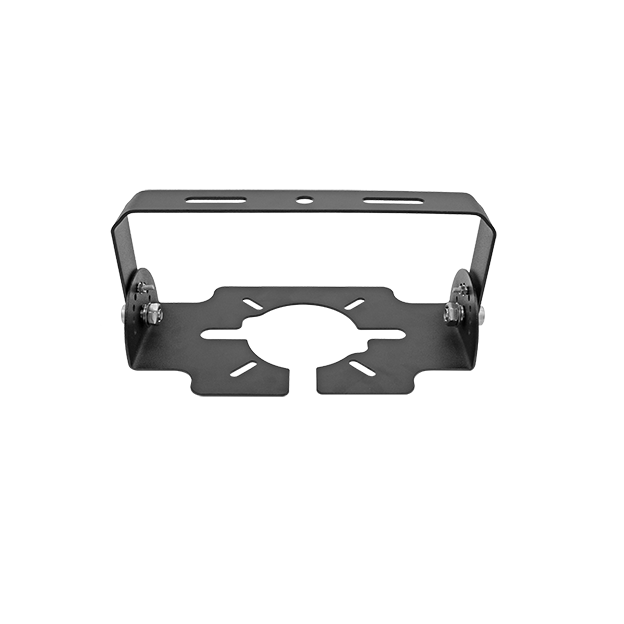

The BOKN U-Bracket Mount (Model: DA00937) is a robust and reliable mounting solution designed specifically for BOKN 150W and 240W LED High Bay Lights.
Manufactured from high-strength steel, this U-shaped bracket provides excellent mechanical stability and secure fixture support for a wide range of industrial and commercial installations.
The bracket is engineered for durability and ease of installation, making it suitable for wall mounting, ceiling mounting, and angled installations in warehouses, factories, workshops, logistics centers, and other high-ceiling environments.
All mounting hardware is made from SUS304 stainless steel, ensuring superior corrosion resistance and long-term reliability, even in demanding industrial conditions. The complete fastener set is supplied in an eco-friendly EU-standard paper packaging, aligning with European environmental and sustainability requirements.
| Item | Specification |
|---|---|
| Product Name | BOKN U-Bracket Mount |
| Model No. | DA00937 |
| Compatible LED Fixtures | BOKN LED High Bay Light – 150W / 240W |
| Mounting Type | U-Bracket (Wall / Ceiling / Angled Mounting) |
| Bracket Material | Steel |
| Bracket Dimensions | 268 × 114 × 35 × 2.5 mm |
| Base Plate Material | Steel |
| Base Plate Dimensions | 255 × 55 × 145 × 1.8 mm |
| Fastener Material | SUS304 Stainless Steel |
| Included Hardware | M10×20 Hex Socket Head Cap Screws ×2 (with flat & spring washers)M10 Nuts ×2M4×18 Hex Socket Head Cap Screws ×2 (with flat & spring washers)M4 Nuts ×2 |
| Corrosion Resistance | High (Stainless Steel Hardware) |
| Application | Industrial & Commercial LED High Bay Installation |
| Packaging | Eco-friendly EU-standard paper bag |
| Environmental Compliance | RoHS / EU environmental requirements |
