Product Description

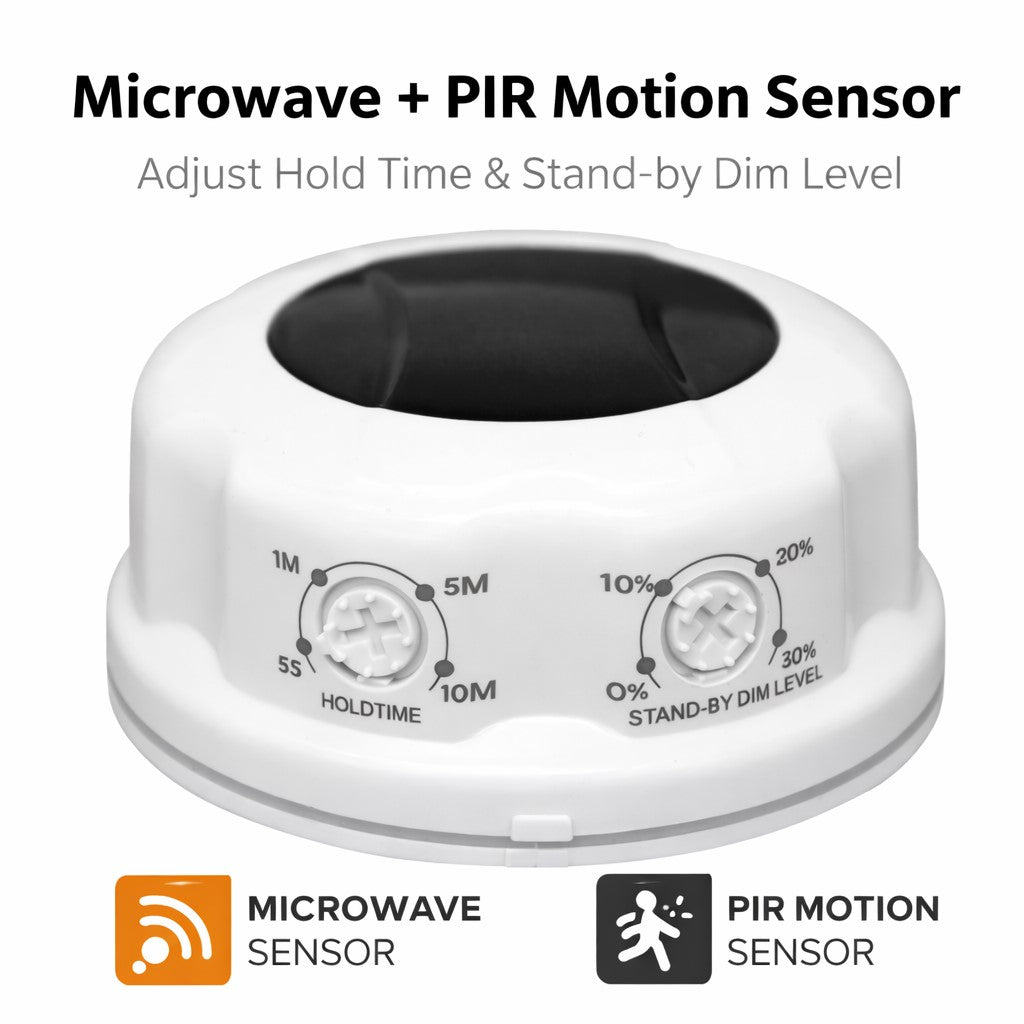

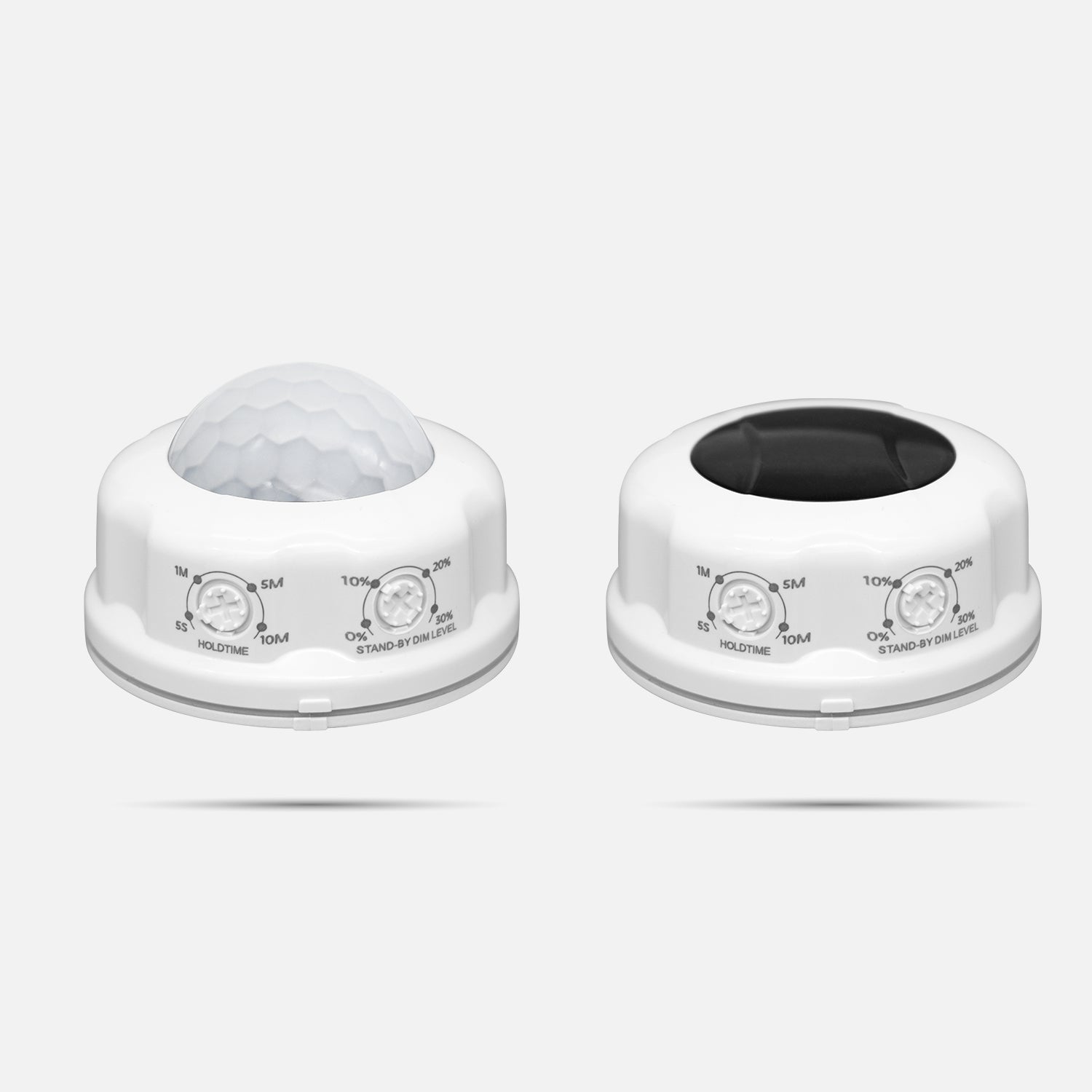

The Haisen Motion Sensor (Model: HD09VR-MH / DA00930) is an advanced sensor solution designed for LED High Bay lighting applications, enabling intelligent lighting control and energy savings in warehouses, factories, and high-ceiling industrial environments.
This sensor supports high-bay (HP) and low-bay (LP) operation modes, offering multiple output level settings to adapt to different mounting heights and application requirements. The sensor allows configurable dimming levels in motion-detection mode, with the minimum standby brightness adjustable down to 20%, helping reduce energy consumption while maintaining safety.
The unit features a default factory setting of constant-on mode at 60% brightness. When operating in sensor mode, a daylight harvesting (light supplement–limited) function can be enabled, ensuring that the luminaire’s maximum brightness does not exceed the preset sensor output level, even when ambient light conditions change.
Please note that this model does not support reset-to-sensor-mode via power cycling (3–8 times ON/OFF reset is disabled), and the reset button cannot restore sensor mode once changed. This design ensures stable and controlled operation in professional installations.
| Item | Specification |
|---|---|
| Product Name | Haisen Motion Sensor |
| Model No. | HD09VR-MH / DA00930 |
| Sensor Type | Motion Sensor |
| Output Signal | 10% output: 1.3V |
| Color | White |
| Dimensions | Ø54 × 31.9 mm |
| Max Detection Distance | Up to 16 m |
| High-Bay Mode (HP) Output Levels | 100% / 75% / 50% / 25% |
| Low-Bay Mode (LP) Output Levels | 100% / 75% / 50% / 25% |
| Factory Default Setting | Constant ON mode, 60% brightness |
| Minimum Standby Brightness | Adjustable down to 20% (sensor mode) |
| Daylight Harvesting Function | Supported (light supplement–limited mode) |
| Reset Function | Power-cycle reset disabled; reset button cannot restore sensor mode |
| Application | Industrial & Commercial LED High Bay Lighting |
