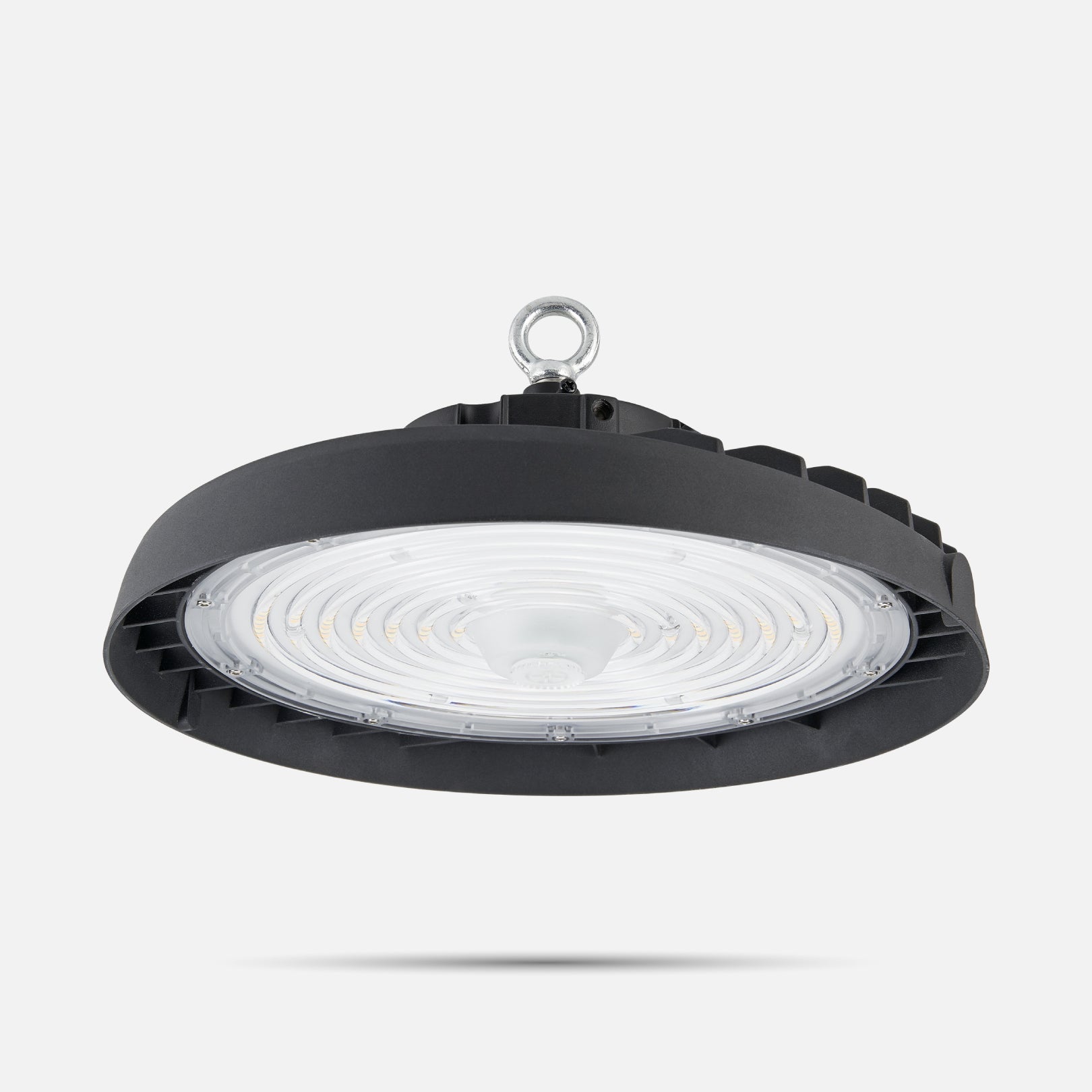

Light your high-ceiling spaces with confidence. The Ningled SKYLON LED High Bay Light is built for warehouses, workshops, factories, gyms, and big-box retail—delivering high efficiency and flexible configuration in one fixture. It’s designed to simplify SKU management with power + CCT adjustability, so you can fine-tune output and color temperature on-site to match each project’s needs.
Engineered for demanding environments, SKYLON features a robust housing with IP65 protection and high impact resistance, plus an accessory ecosystem to support different optics, mounting needs, and jobsite requirements. For added energy savings, choose optional motion/daylight sensing solutions with remote parameter control—ideal for facilities that want “light only when needed.”
Key selling bullet points

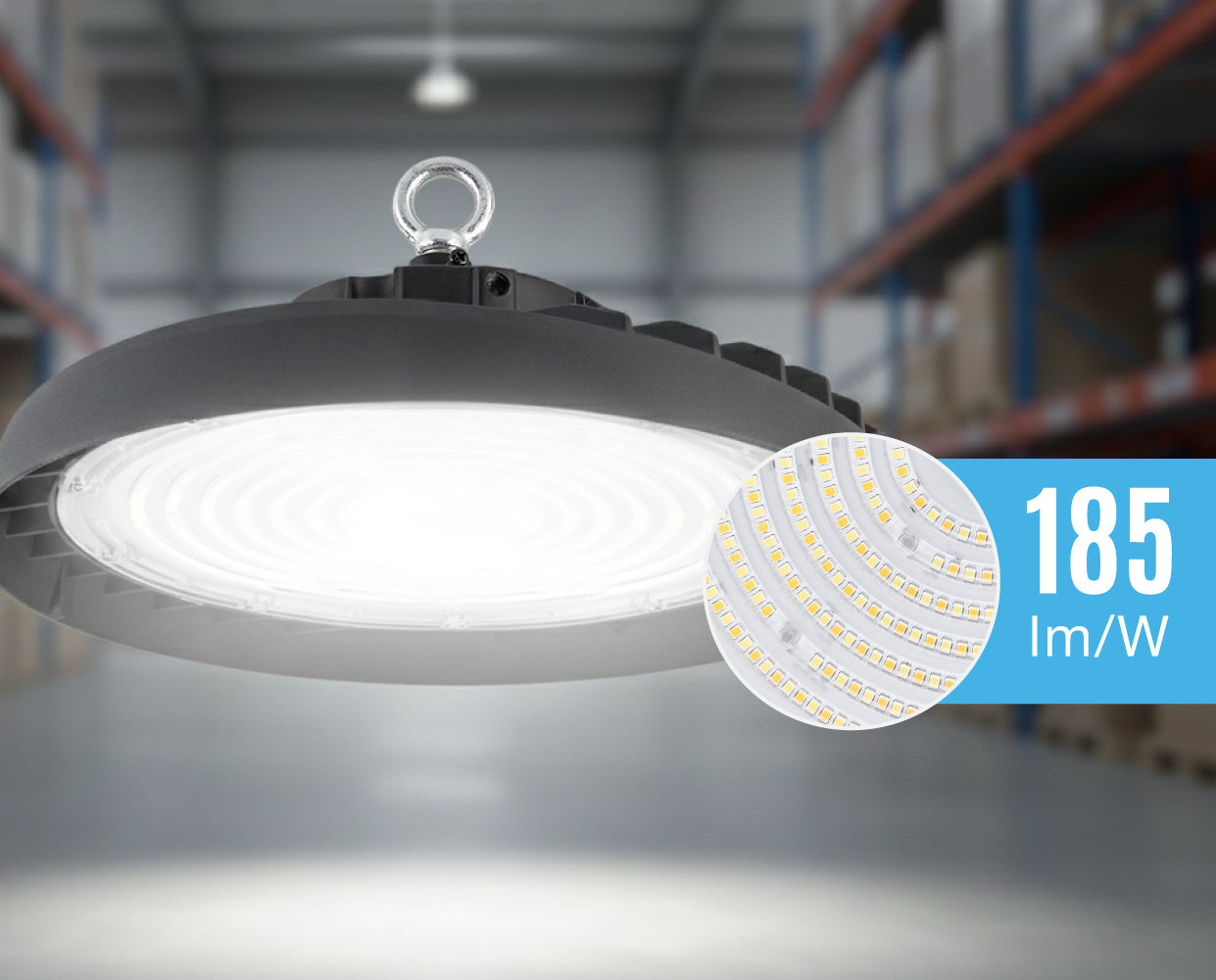

- Ultra-high efficiency up to 210 lm/W for bright, cost-effective illumination in large spaces.
- Power + CCT adjustable design helps reduce SKU complexity and adapt lighting to different applications.
- 3 Power selectable + 3 CCT selectable for quick on-site tuning (great for standardizing inventory).
- Multiple beam angle options (optics available for different mounting heights and layouts).
- IP65-rated for dusty, humid, and industrial environments.
- 5-year warranty for long-term peace of mind.
- Optional microwave sensor / PIR sensor to automate lighting and reduce energy waste.
- Remote control support for sensor parameter setup (ideal for commissioning multiple fixtures consistently).
- Service-friendly design with replaceable components (built for easier maintenance).
- Accessory-ready: optional lenses, reflectors, safety chain, protective grid, fast connector, emergency battery pack, and more.
“Technical highlights” section (optional add-on)
- Wattage options shown in the datasheet include 100W / 150W / 200W / 240W, with selectable power steps depending on model.
- Selectable CCT is indicated in the datasheet as a 3-CCT option.
- Controls: optional dimming/sensor control configurations are referenced (including sensor-based functions and setup).
If you tell me your preferred tone (more technical vs. more sales/marketing) and whether you want to show exact CCT values and lumens per wattage on the Shopify page, I can refine this into a final “ready-to-paste” Shopify layout with sections + icons.
Product Specifications
| Item | HB22-13A-100 | HB22-13A-150 | HB22-13A-200 | HB22-13A-240 |
|---|---|---|---|---|
| Selectable Power | 60W / 80W / 100W | 90W / 120W / 150W | 120W / 160W / 200W | 144W / 192W / 240W |
| Max Luminous Flux | 21,000 lm | 31,500 lm | 42,000 lm | 50,400 lm |
| Luminous Flux (Selectable) | 12,600 / 16,800 / 21,000 lm | 18,900 / 25,200 / 31,500 lm | 25,200 / 33,600 / 42,000 lm | 30,240 / 40,320 / 50,400 lm |

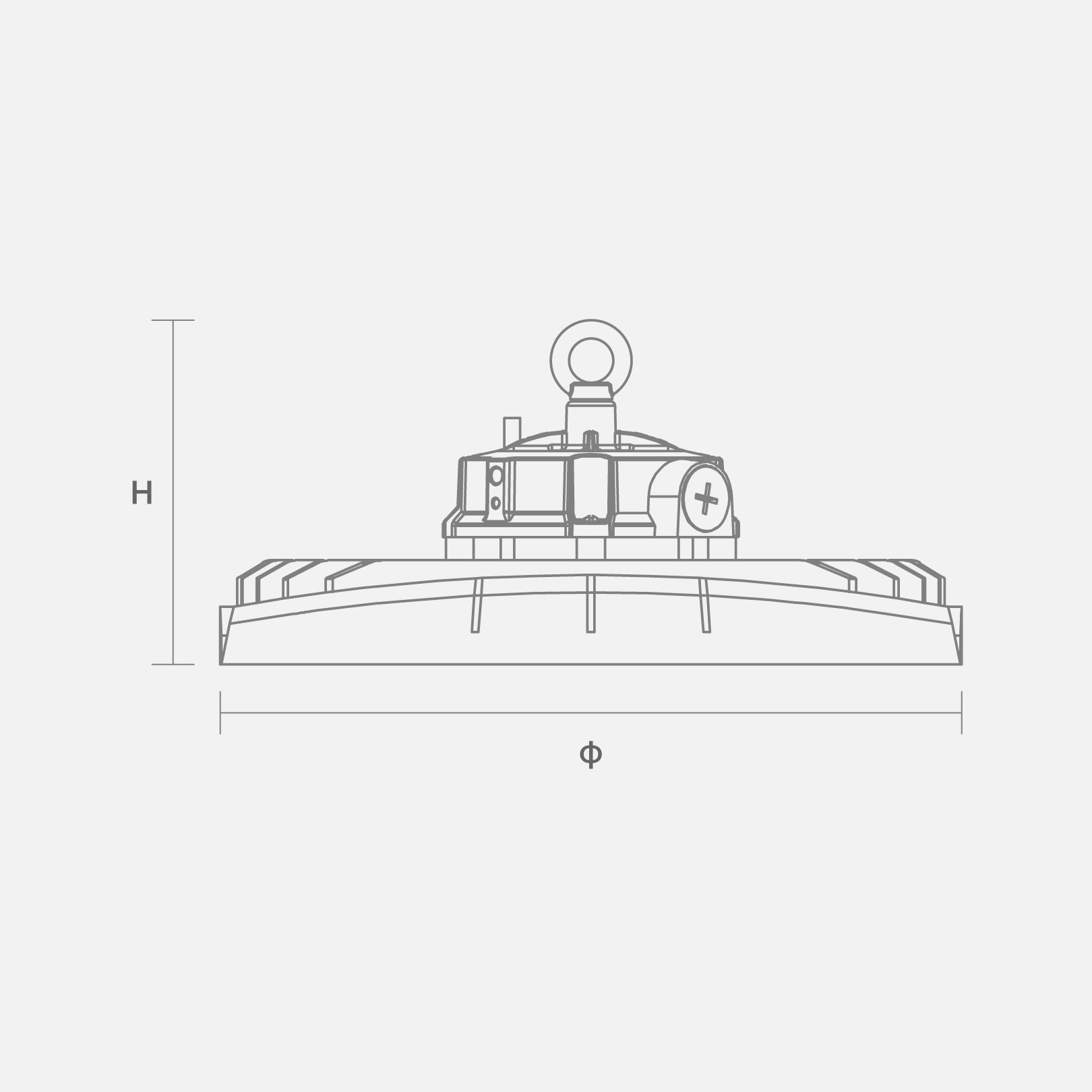

| Product Dimensions | Ø245 × 115 mm | Ø280 × 115 mm | Ø320 × 115 mm | Ø320 × 115 mm |
| Net Weight | 1.6 kg | 1.8 kg | 2.4 kg | 2.5 kg |
Electrical & Optical Specifications
| Specification | Details |
|---|---|
| Driver Brand | Lifud |
| Driver Type | IC Driver |
| Input Voltage | AC 180–260V (Rated: AC 220–240V) |
| Frequency | 50 / 60 Hz |
| Power Factor | >0.95 |
| Surge Protection | 6kV / 6kV |
| Control Options | 0–10V Dimmable / Microwave Sensor / PIR Sensor |
| LED Chip Type | SMD 2835 |
| Luminous Efficacy | Up to 210 lm/W |
| Energy Efficiency Class | Class A |
| CRI | Ra ≥70 |
| Color Consistency | SDCM < 6 |
| Available CCT | 4000K / 5000K / 6000K |
| Beam Angles | 60° / 90° / 120° |
Mechanical & Environmental
| Specification | Details |
|---|---|
| Mounting Options | Loop Hanging / Ceiling Mounting / Wall Mounting |
| Material | Die-cast Aluminum + Polycarbonate Optical Lens |
| Finish | Powder Coating |
| Housing Color | Black (RAL 9017) |
| IP Rating | IP65 |
| IK Rating | IK08 |
| Operating Temperature | −30°C to +50°C |
| Cable Specification | 3 × 1.0 mm² |
Reliability & Warranty
| Specification | Details |
|---|---|
| Switching Cycles | 20,000 |
| LED Lifetime (Ta = 25°C) | L90: 50,000 h / L80: 100,000 h / L70: 160,000 h |
| Warranty | 5 Years |
| Power Tolerance | ±10% |
Product Details
Product Details
Designed with care and crafted from premium materials, our products combine durability, comfort, and timeless style. Each piece is thoughtfully made to enhance your living space, offering a perfect balance of functionality and elegance that complements any home and suits your unique lifestyle.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Take A Closer Look

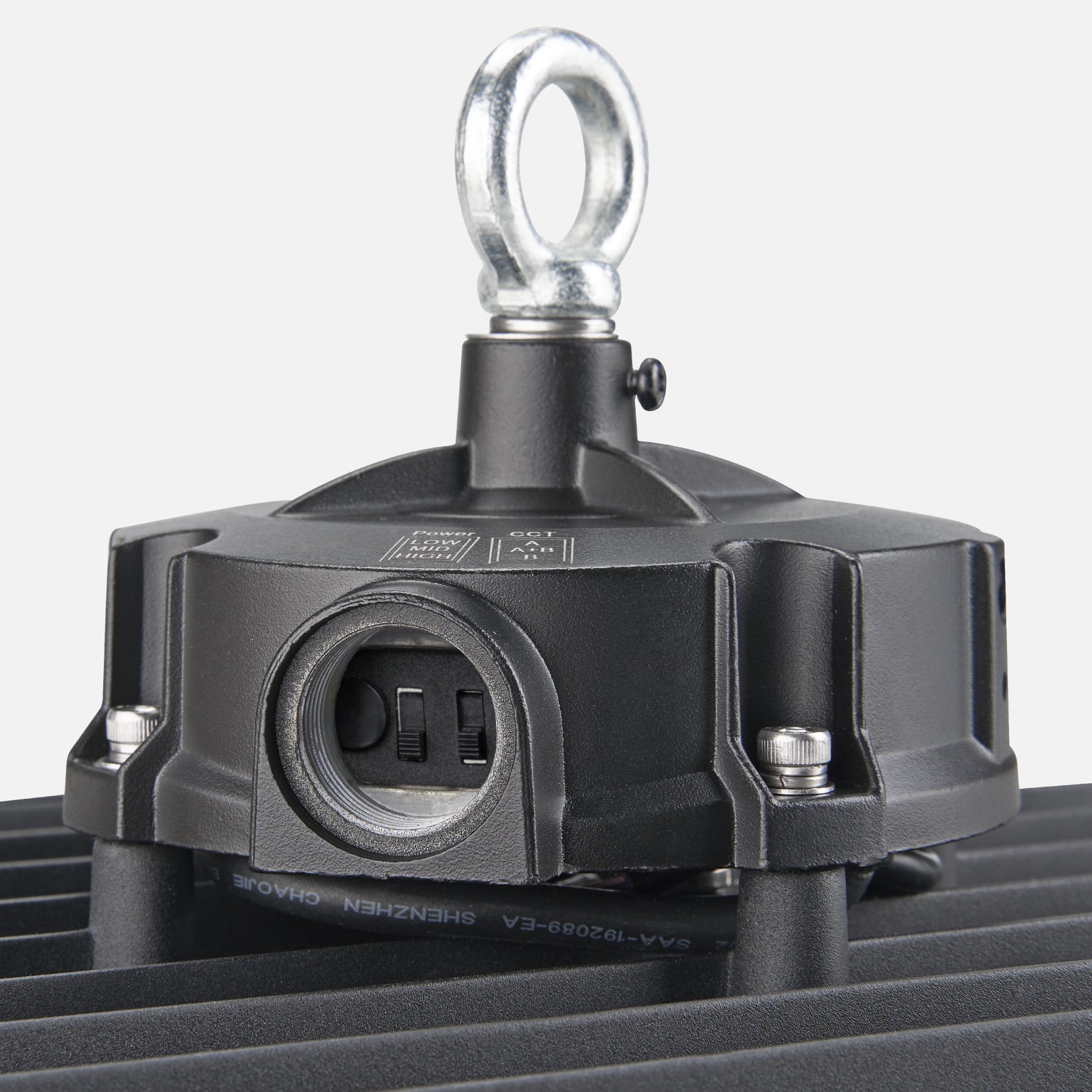

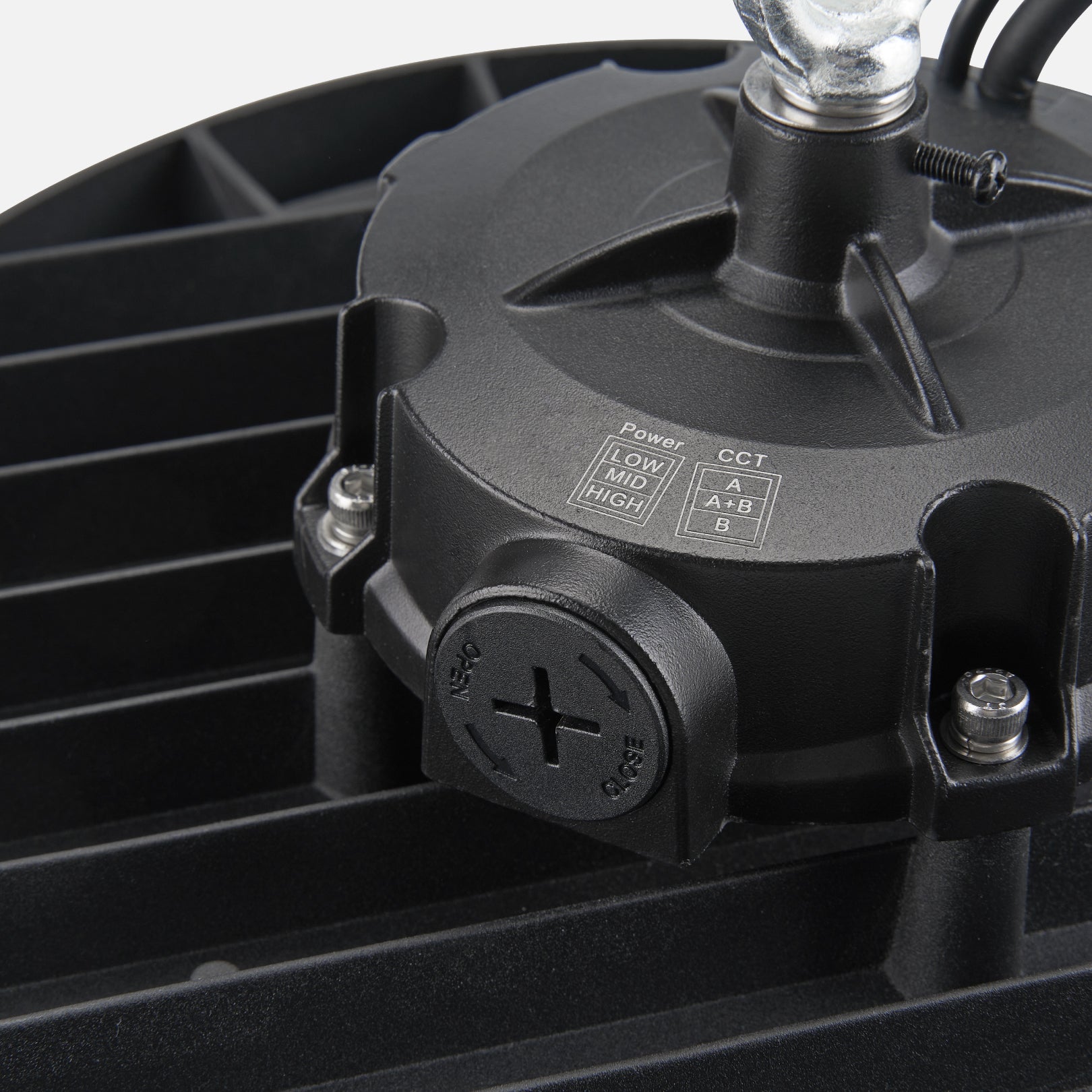

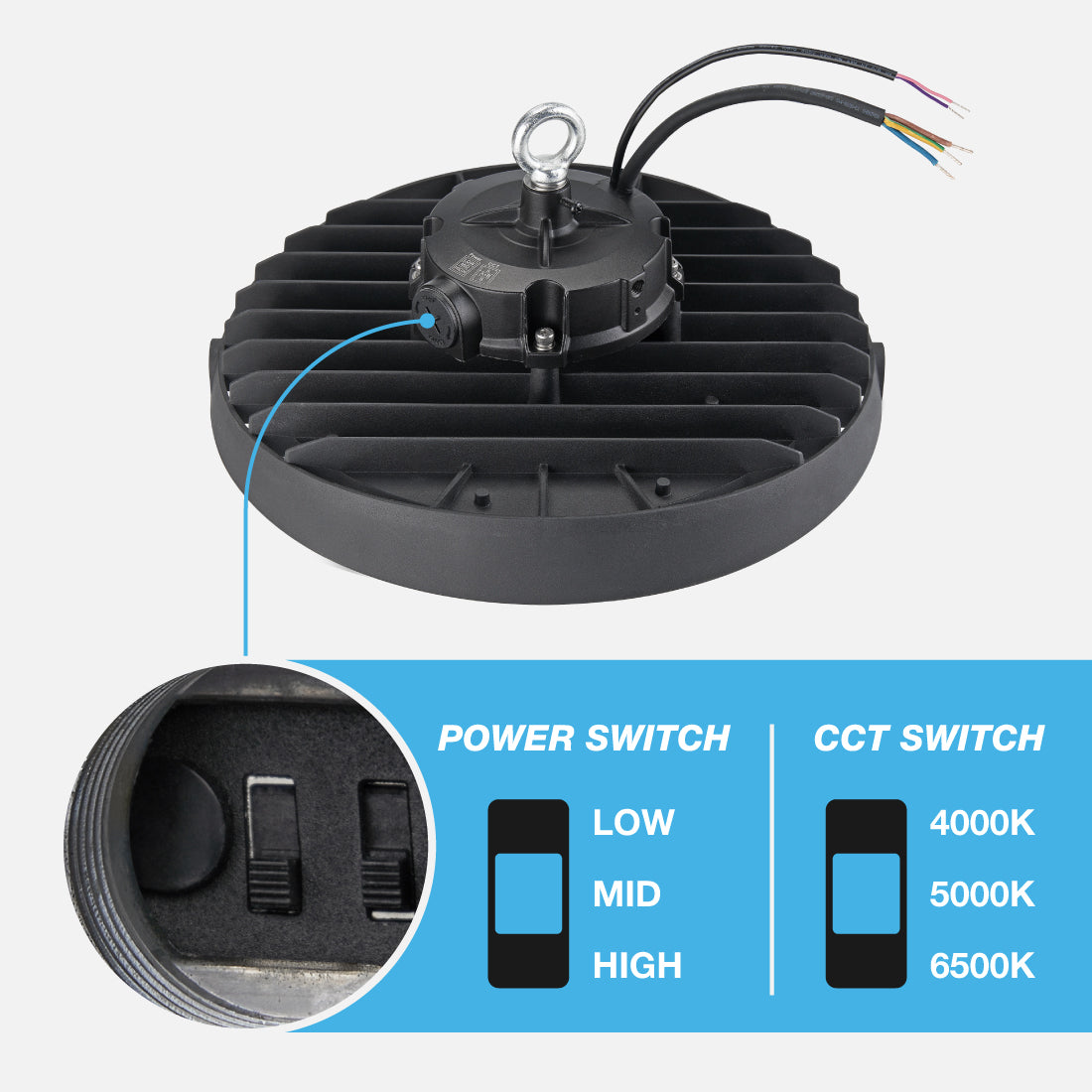

CCT & Power Selectable by DIP Switch

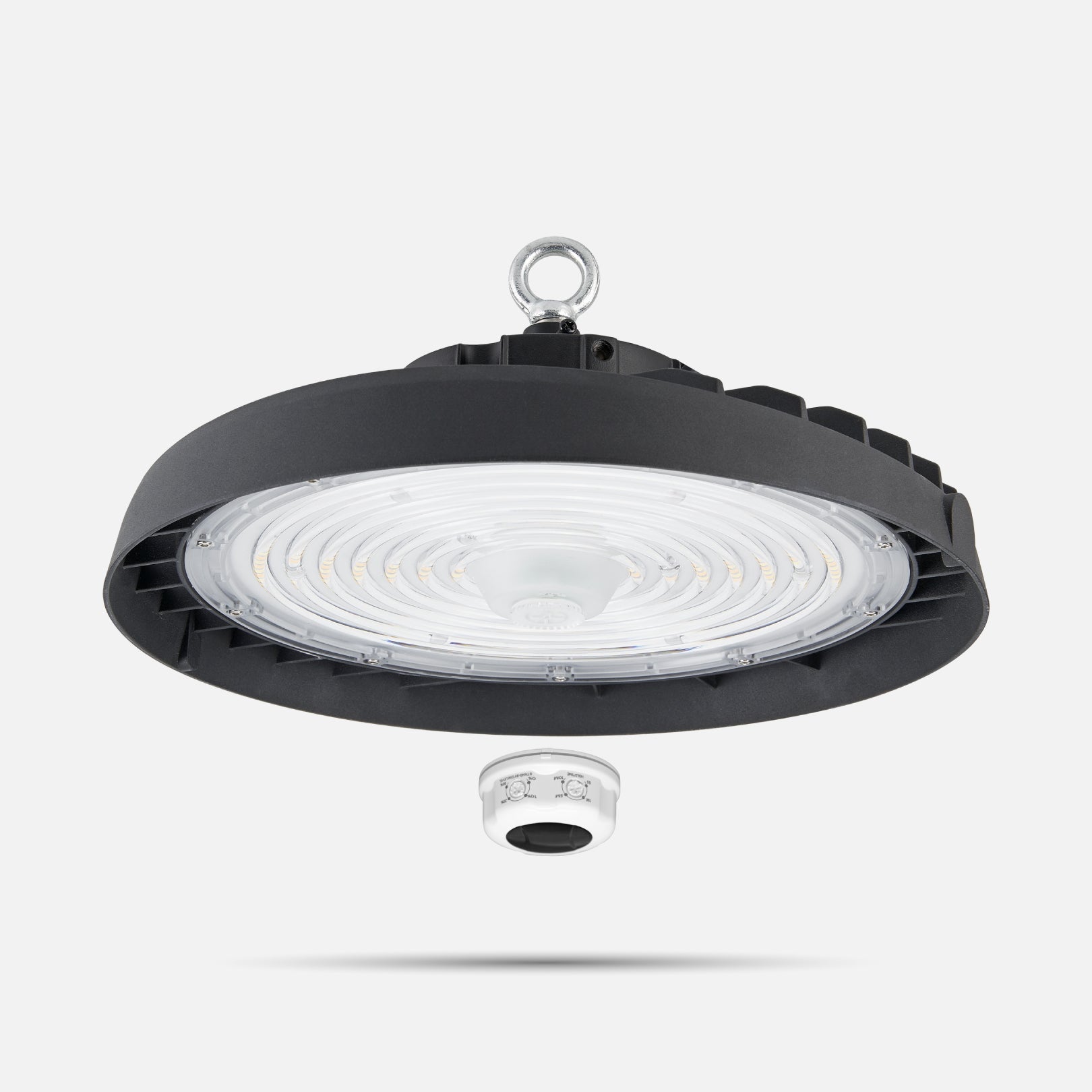

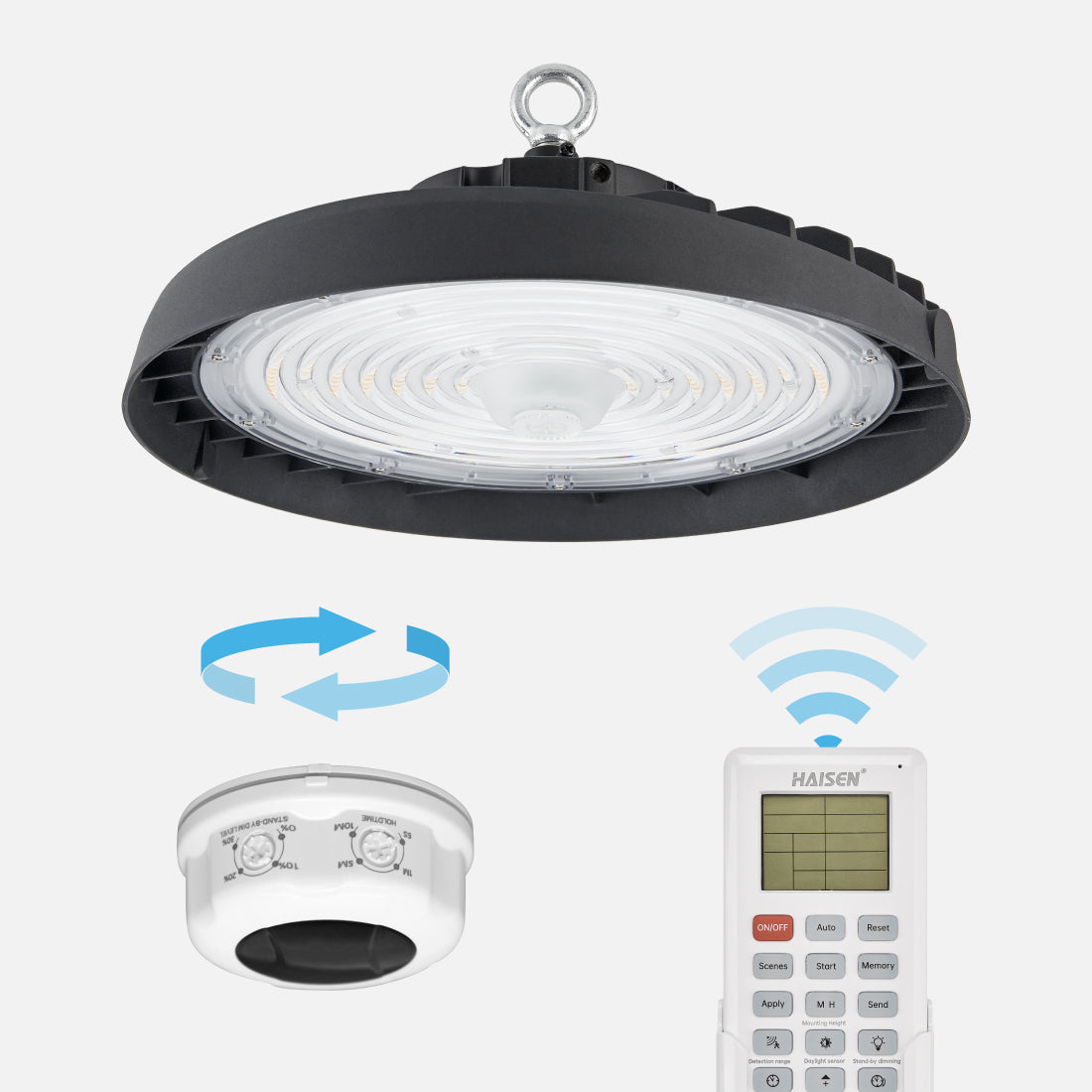

Plug & Play Sensor Function

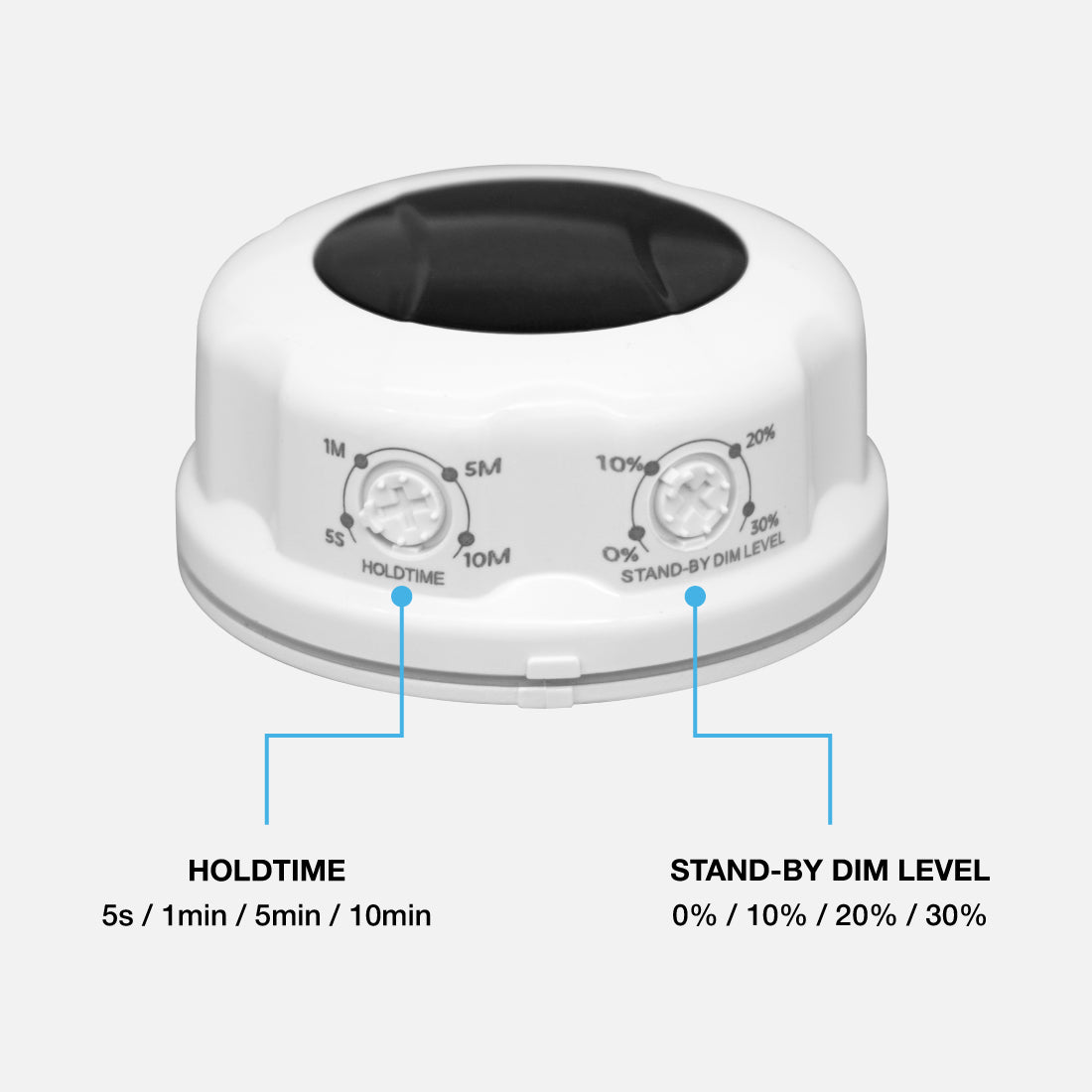

Advanced Motion Sensor with 2-in-1 Rotating Switches

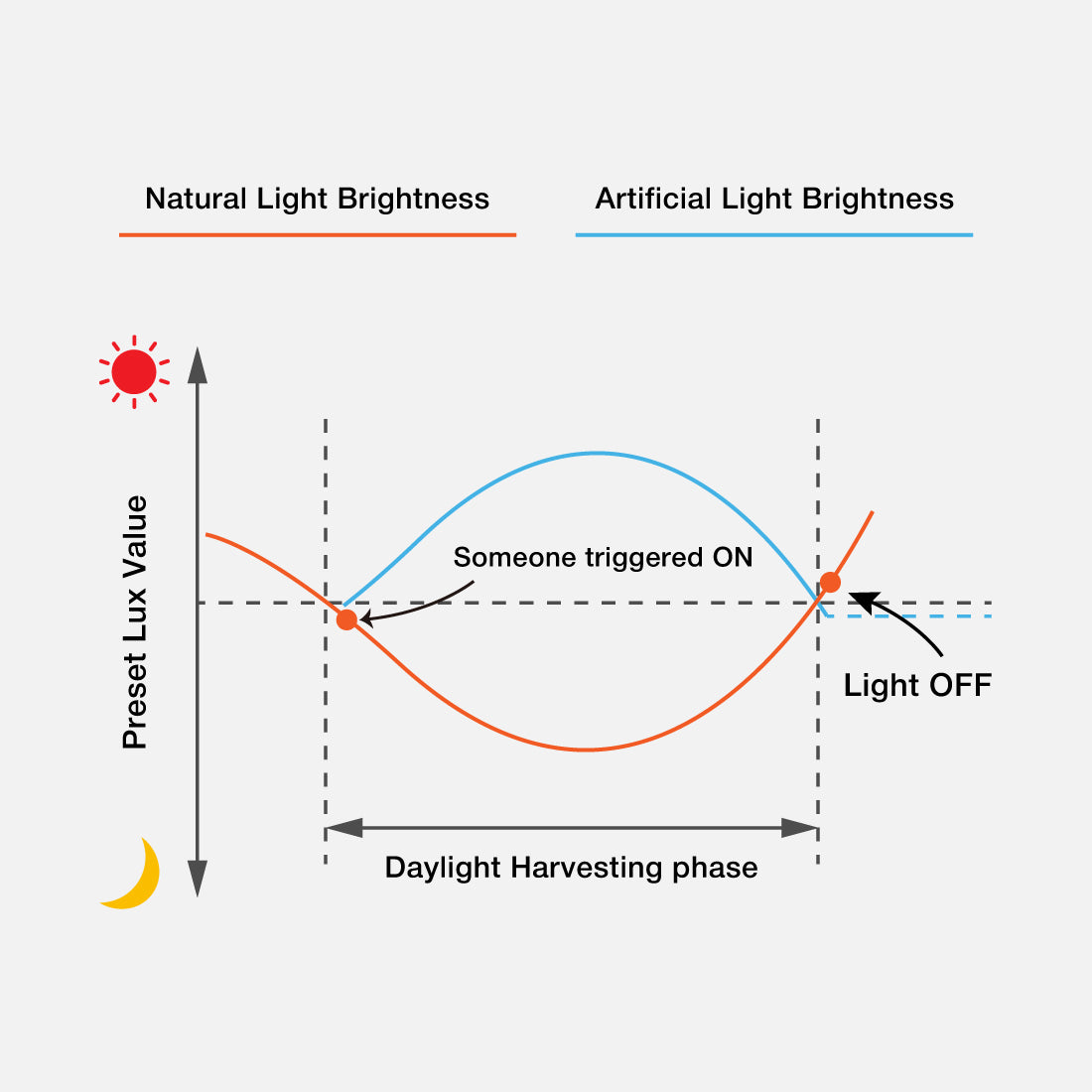

More Energy-Efficient with Daylight Harvesting Motion Sensor

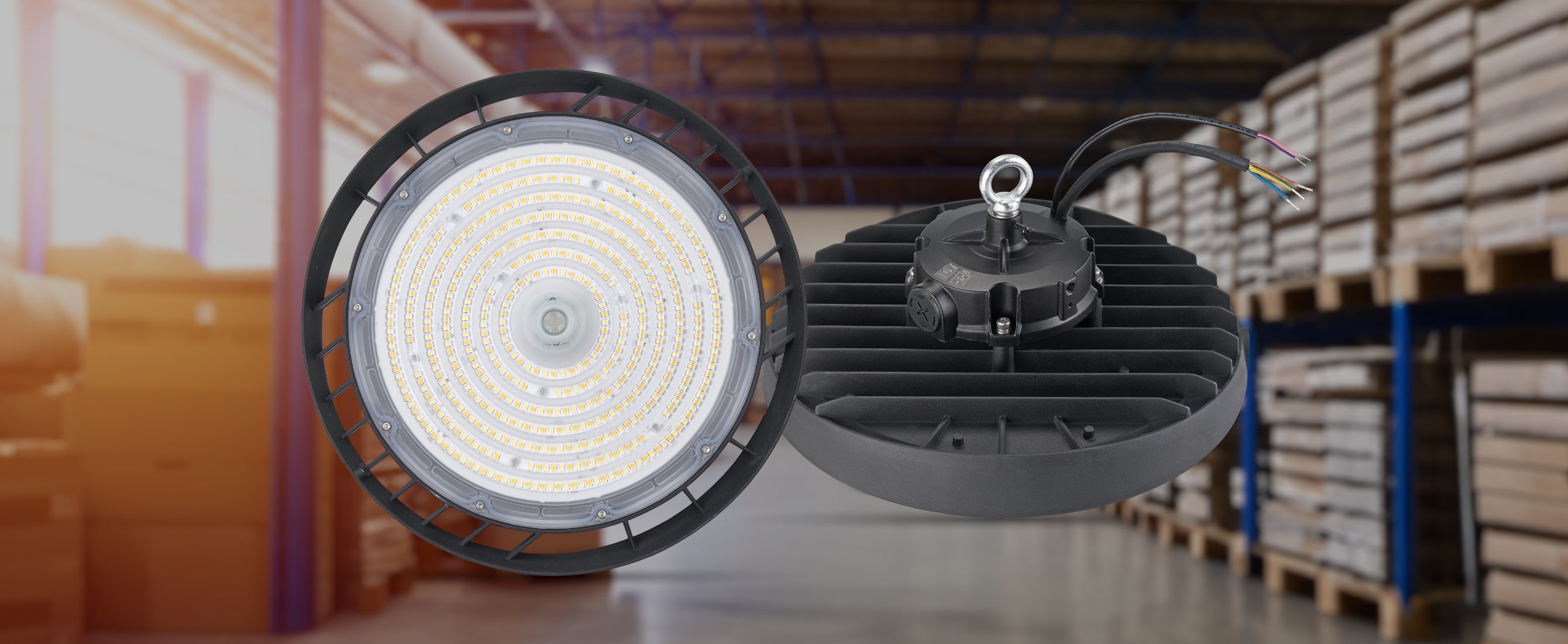

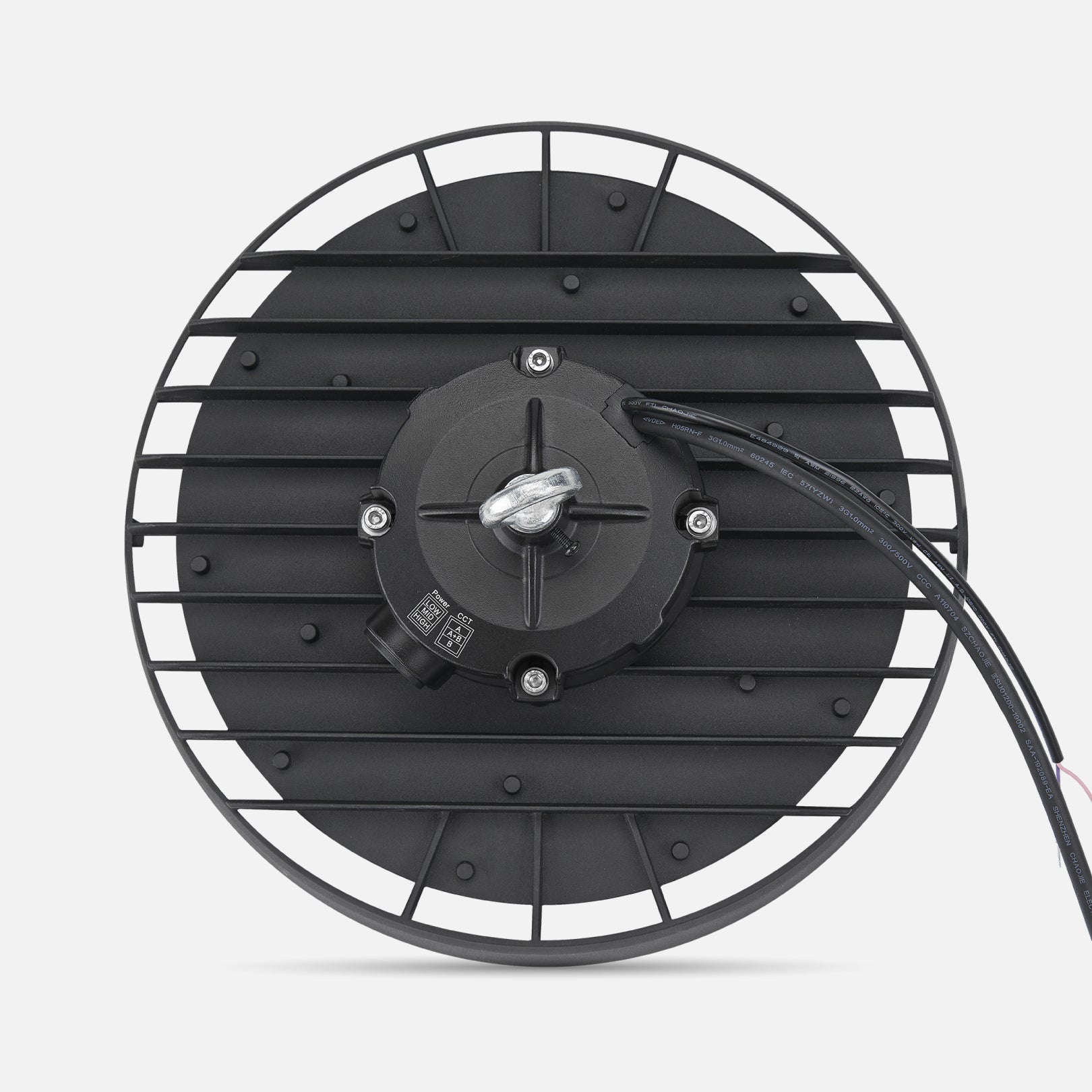

Unique Tailored Construction

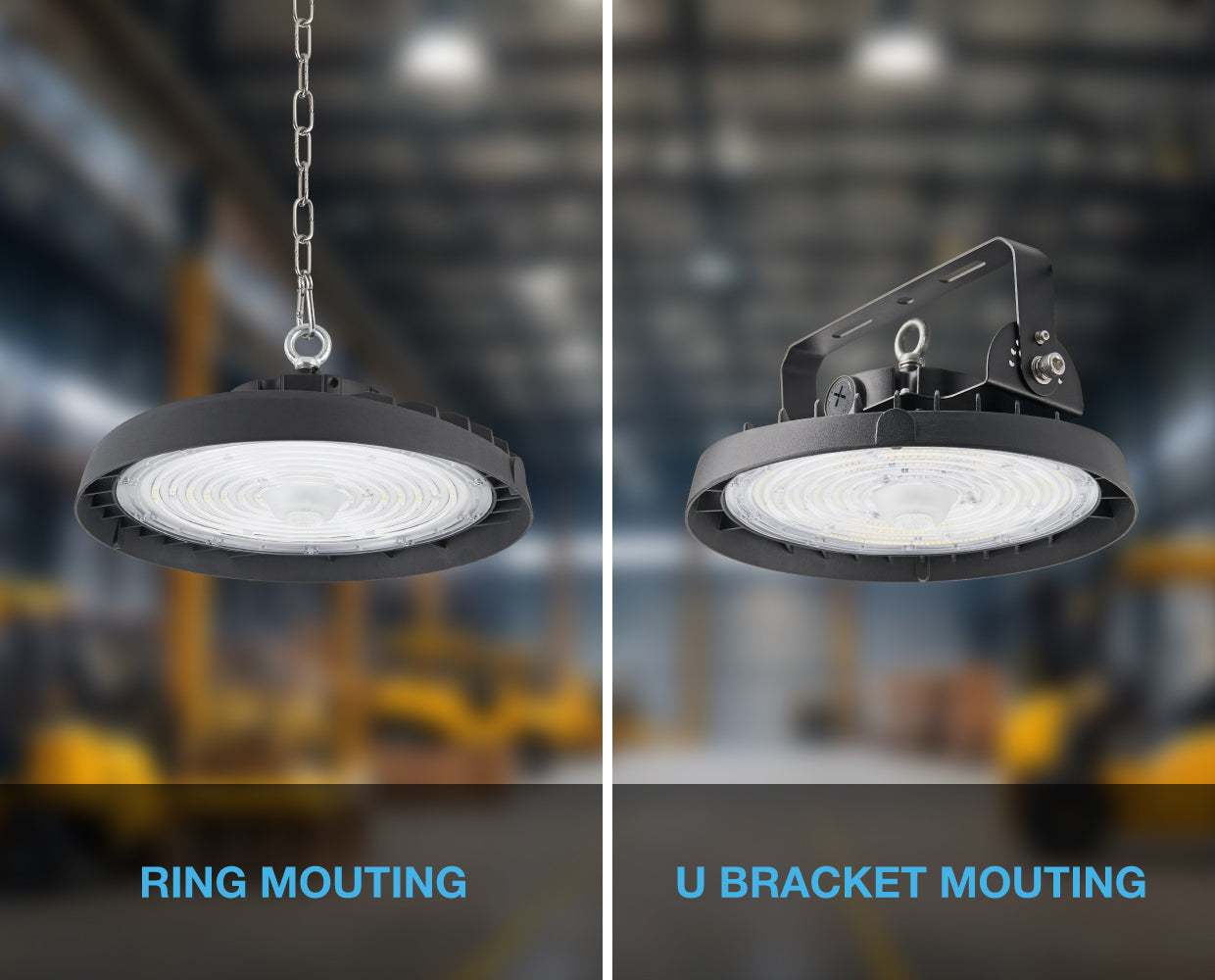

Mounting Options
